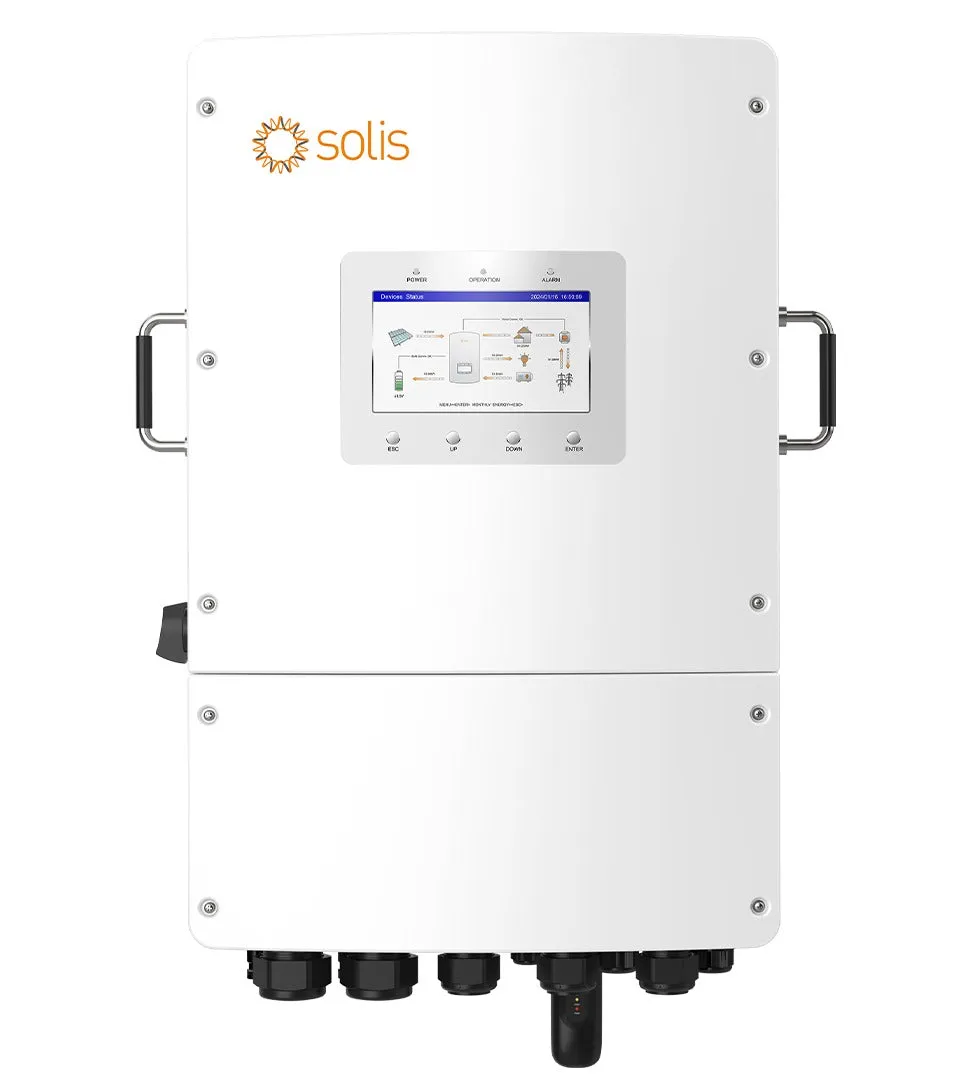

Solis 6kw Hybrid Solar Inverter

Solis 6kw Hybrid Solar Inverter
New

₨ 280,000

Key Features
  • Generator connectivity with multiple input methods and automatic generator On/Off control
  • Automatic UPS switching 10 second 200% surge power backup overload capability
  • Supports 1ph and 3ph flexible connection with max 36kW in parallel
  • Up to 135A max charge/discharge current 6 customizable charge/discharge time settings
  • Compatible with lead-acid and lithium batteries, with multiple battery protection features
  • Supports peak shaving control in both “self-use” and “generator” mode
Quantity
Category: Brand:

Description

The Solis 6kW 1P Hybrid Solar Inverter offers versatile generator connectivity with multiple input methods and automatic On/Off control. It features automatic UPS switching, providing a 10-second, 200% surge power backup overload capability. This inverter supports both single-phase and three-phase connections, with a maximum of 36kW in parallel. It boasts a high charge/discharge current of up to 135A and six customizable charge/discharge time settings. Compatible with lead-acid and lithium batteries, it includes various battery protection features and supports peak shaving control in “self-use” and “generator” modes.

Additional information

Recommended max. pv power

9.6 kw
max. input voltage

600 v
rated voltage

330 v
start-up voltage

90 v
mppt voltage range

90-520 v
max. short circuit current

24 a / 24 a
mppt number/max. input strings number

2/2
battery type

li-ion / lead-acid
battery voltage range

40-60 v
max. charge / discharge power

6 kw
max. charge / discharge current

135 a
communication

can/rs485
output ac

(grid side)
rated output power

6 kw
operation phase

1/n/pe
rated grid voltagel

220 v / 230 v
rated grid frequency

50 hz
rated grid output current

27.3 a / 26.1 a
power factor

>0.99 (0.8 leading – 0.8 lagging)
thdi

<2%
input

ac (grid side)
input voltage range

187-253 v
max. input current

40 a
frequency range

45-55 hz / 55-65 hz
max. apparent output power

2 times of rated power, 10 s
back-up switch time

<4 ms
rated output voltage

1/n/pe, 220 v / 230 v
rated frequency

50 hz
rated output current

27.3 a / 26.1 a
max. output current

max. output current
max. ac passthrough current

40 a
thdv (@linear load)

<2%
max. efficiency

> 96.9%
eu efficiency

> 96.5%
dc reverse-polarity protection

yes
ground fault monitoring

yes
dimensions (w*h*d)

406*560*205 mm
weight

24 kg
topology

high frequency isolation (for battery)
operating ambient temperature range=

-40 ~ +60°c
ingress protection

ip66
